| Research and development of the hydrogen storage materials
and manner of co-generation heat utilization is the major theme to proceed toward
the realization of hydrogen society. |
PCT measurement system is the instruments generally
called Sieverts' instruments for the measurement of adsorption and desorption
of hydrogen gas by metal hydride or carbonaceous materials. The data obtained
from this instrument is essential for the determination of the material's P(pressure),
C(capacity), and T(temperature) related properties.
In addition, the instruments can be used for the studies of absorption and desorption
reaction kinetics of the other gas besides hydrogen. |
|
 |
Our unique software program allows the
automated
measurements to be easily adjusted. Hydrogen adsorption
and desorption data is conveniently monitored by graphic
representations that are displayed on a monitor screen in
real time.
The easy to use controller allows nearly anyone to acquire reliable accurate data.
We supply English version software program for foreign market. This especially
recommendable for the university and institute which own foreign researcher and

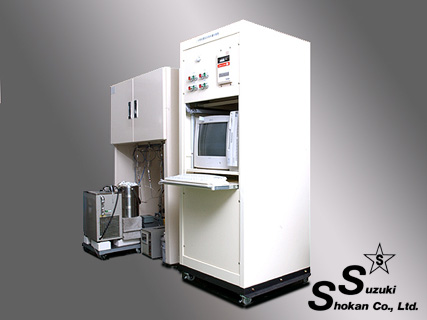

student. The instruments consists of (1)Control system,(2) Measurement system,
(3)Vacuum system, (4) Gas supply system, (5)Thermostatic bath.
In case the various kind of sample measurement is required at once, we line up
the PCT system from 6 channel in maximum that can perform the measurement all
at once or at random, and 4 channel, 2 channel, and 1 channel model are also available. |
|
|
|
